Products Countable pulse power supply

Switching DC power supply series

Switching DC power supply series

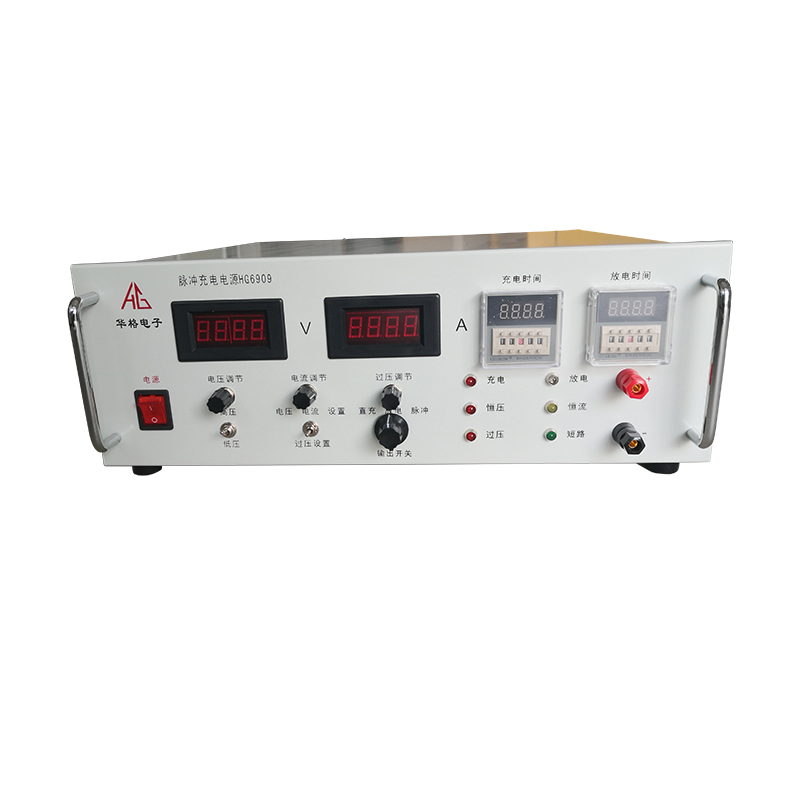

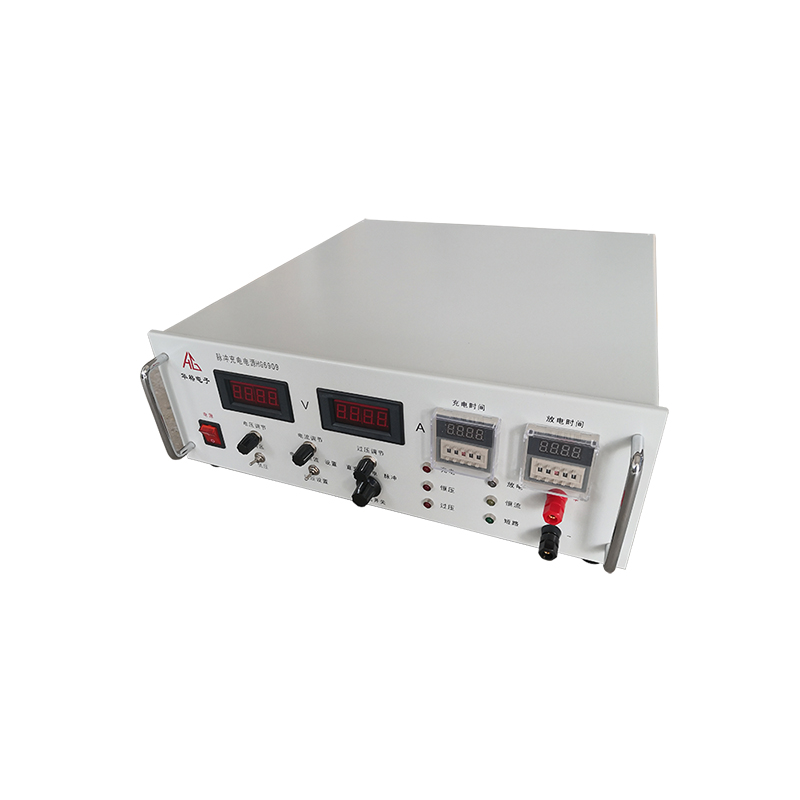

Countable pulse power supply

The countable pulse charging power supply has the high-power output characteristics of high output voltage and large output current. The output current and voltage can be set arbitrarily, and the charging time and discharge time can be set arbitrarily. It has strong flexibility. Moreover, it also has all functions of DC charging power supply, which is suitable for sophisticated charging of electrolyte capacitors and bile electrolytic capacitors of various specifications, As well as the impact resistance test and instantaneous discharge test of the capacitor! And it has good electromagnetic compatibility. It has overvoltage, short circuit and overtemperature protection functions, which well protects the instruments and operators.

The countable pulse charging power supply has the high-power output characteristics of high output voltage and large output current. The output current and voltage can be set arbitrarily, and the charging time and discharge time can be set arbitrarily. It has strong flexibility. Moreover, it also has all functions of DC charging power supply, which is suitable for sophisticated charging of electrolyte capacitors and bile electrolytic capacitors of various specifications, As well as the impact resistance test and instantaneous discharge test of the capacitor! And it has good electromagnetic compatibility. It has overvoltage, short circuit and overtemperature protection functions, which well protects the instruments and operators.

Technical indicators:

1. Continuous adjustable range of constant voltage value: 0 ~ ~ rated maximum resolution: 0.1V;

2. Constant current continuous adjustable range: 0 ~ ~ rated maximum resolution: 0.01A;

3. The adjustable range of charging time is 0.01 ~ 99 minutes and 99 seconds, and the resolution is 0.01 seconds;

4. The adjustable range of charging time is 0.01 ~ 99 minutes and 99 seconds, and the resolution is 0.01 seconds;

5. Counting range: 1 ~ 9999 charge and discharge, which can be customized for higher times;

6. Error of complete voltmeter: ≤ 1%;

7. Error of complete ammeter: ≤ 1%;

8. DC charging, pulse charging, discharge, manual direct conversion;

9. Load effect (current regulation rate): constant voltage less than 0.3% + 10mV;

10. Source effect (voltage regulation rate): constant voltage less than 0.2% + 10mV;

11. Ripple: less than 0.05% output voltage (effective value);

12. Working mode: continuous work.
